Confined Space

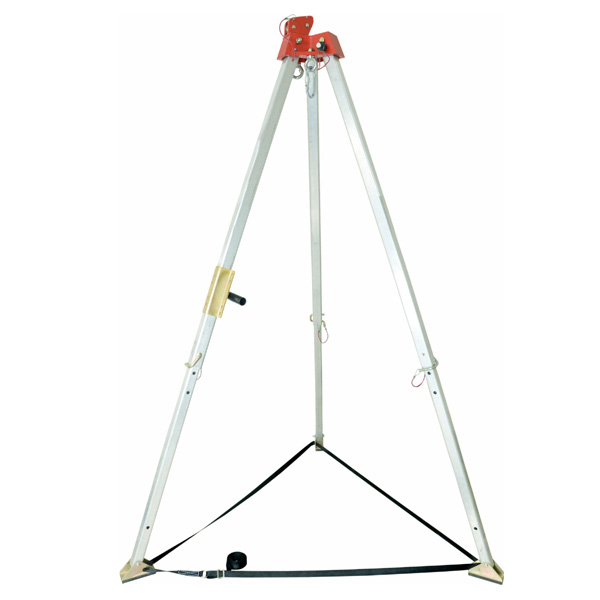

Tripod - U801TP

F or access in Confined Space.
Lifting Load Capacity : 135 Kgs (330 lbs).
Wire Length: available in 20 m and 25m.
Strength of anchorage point greater than 12 kN
Every Tripod is provided with inbuilt fixture for attaching our winch U802TW (can be supplied without this fixture on special request).
Every Tripod is provided with Tripod Kit Bag Ref. No. KB-904

Length	Specification
7 ft.	Fully adjustable telescopic legs, adjustable height from 1.15m to 2.15m. Wheelbase (Footprint) : 1.5m Diameter. Weight : 13 kg approx. Maximum load capacity : 500 kgf. Compliance: EN 795 Class B
10 ft.	Fully adjustable telescopic legs, adjustable height from 1.9m to 2.9m. Wheelbase (Footprint) : 1.8m Diameter. Weight : 15 kg approx. Maximum load capacity : 500 kgf. Compliance: EN 795 Class B

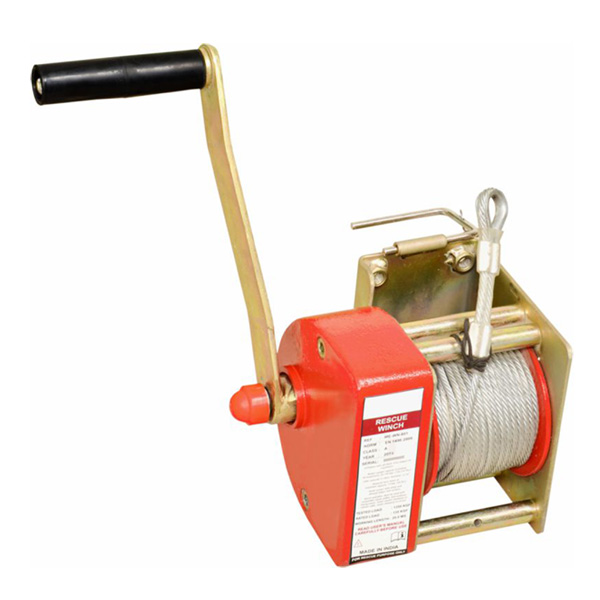

Winch - U802TP

To be used for raising or lowering of personnel or material into confined spaces.
Equipped with bolting fixture for robust fitting on to the tripod TP-800.
Lifting Load Capacity : 135 Kgs (330 lbs).
Wire Length: 20 m, 25m.
Conforms to EN 1496:2006 Class A.
To be used with a Retractable Fall Arrester when deployed for raising or lowering a person.
Also Available with the SS wire rope instead of galvanized rope. Respective references with SS wire rope shall be U802TW(20SS) and U802TW(25SS).

Ref. No.	Length	Weight
U802(20)TW	20 Mtr.	8.080 kg.
U802(25)TW	25 Mtr.	8.520 kg.

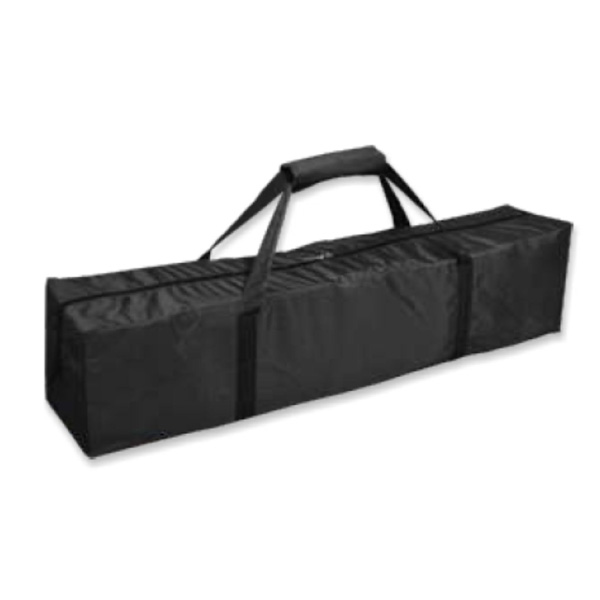

Tripod Kit Bag - U800Kit
