The Anchorage point is commonly referred to as a secure tie off point. It is the place where a worker anchors himself so that he can easily move about that point, and also hold on safely incase he experiences a fall.
According to EN 795:2012, Anchor devices have been classified into various types, names Type A, B, C, D and E. UVIRAJ offers a range of anchor devices which fall under various such types.

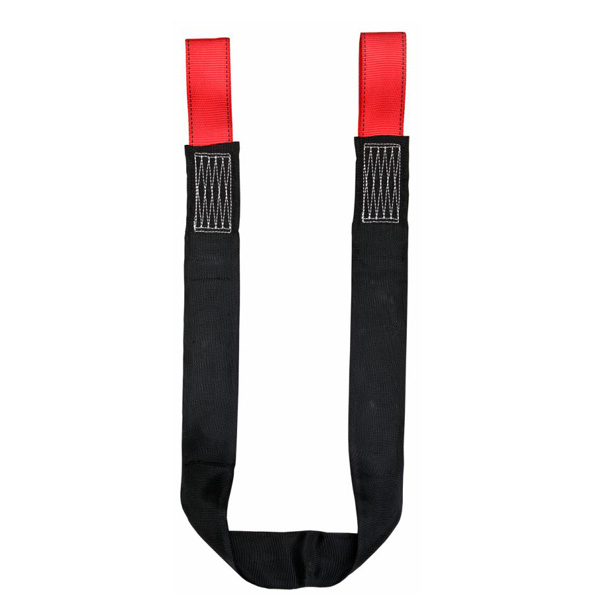

Product Code - U710EA
Both Side Loop with Tubular
Anchor Strap Loop Disposable Concrete Anchor Point Strap is attached to a structure capable of supporting 5000 lbs. 1-3/4" x 4" loop to loop with full length wear pad. Red strap. Various Lengths. Meets or Exceeds ANSI Z359.1-2007.

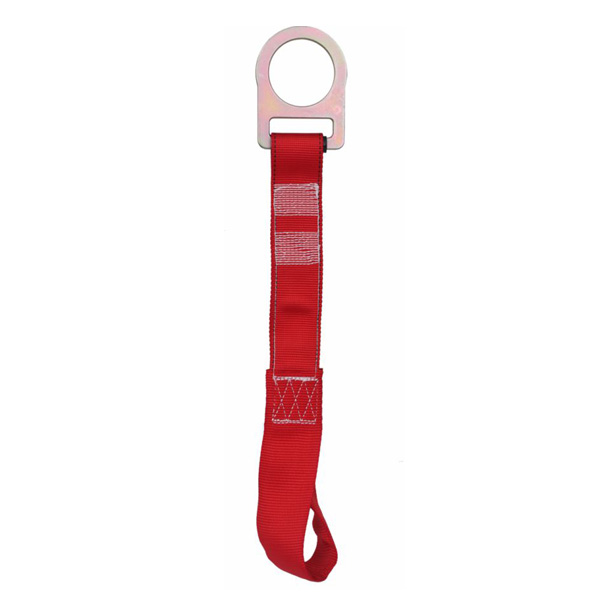

Product Code - U711EA
Cross Arm Strap
Made up of 44mm wide Polyester Webbing.
Length : 1.07mtr. or as requested.
Has a D-Ring at one end and textile loop at the other
end. Also provided with a polyester covering on the
load-bearing face of the webbing, for abrasion
resistance.
Strength : Min 18 kN for 3 minutes.
Conforms to EN 795 : 2012 Type B.
*Length available as per request

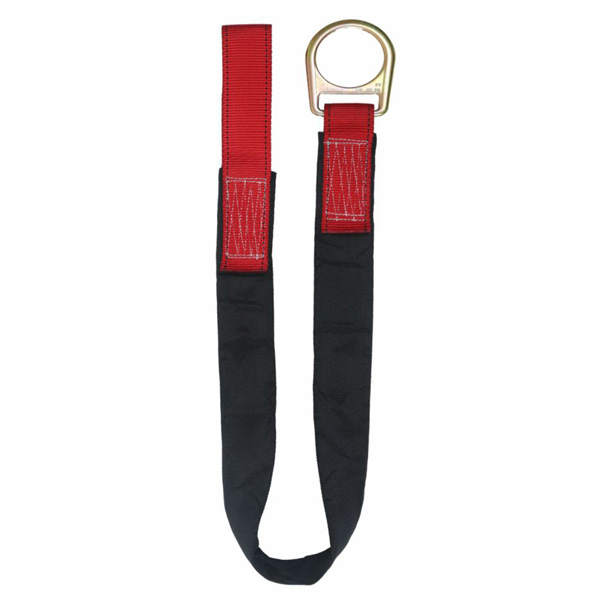

Product Code - U712EA
One Side D-ring and Other Side Loop with Tubular
Disposable concrete anchor strap is attached to a structure capable of supporting 5000 lbs. 1-3/4" wide strap (variable lengths available) with a loop on one end, and either a large D-Ring or a loop on the other end, and a full length wear pad. Red strap. Meets or Exceeds ANSI Z359.1-2007 and OSHA.

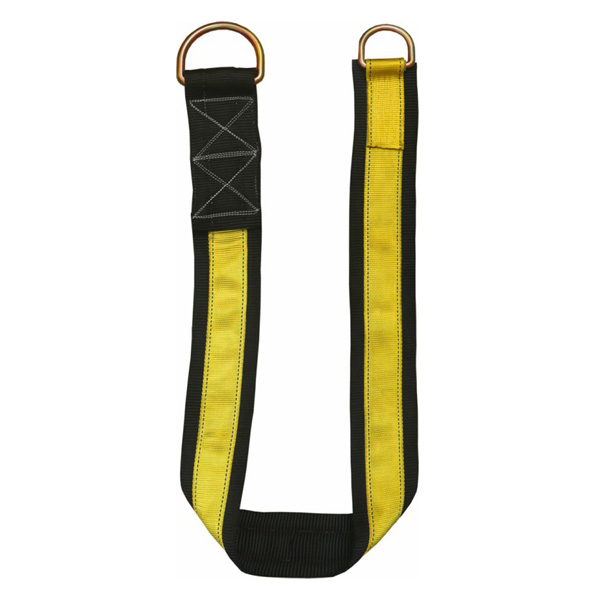

Product Code - U720EA
Yellow/ Black Cross Arm Strap
3" wide (variable lengths available) with large D-ring and small D-ring. Meets or Exceeds ANSI Z359.1-2007 and OSHA.

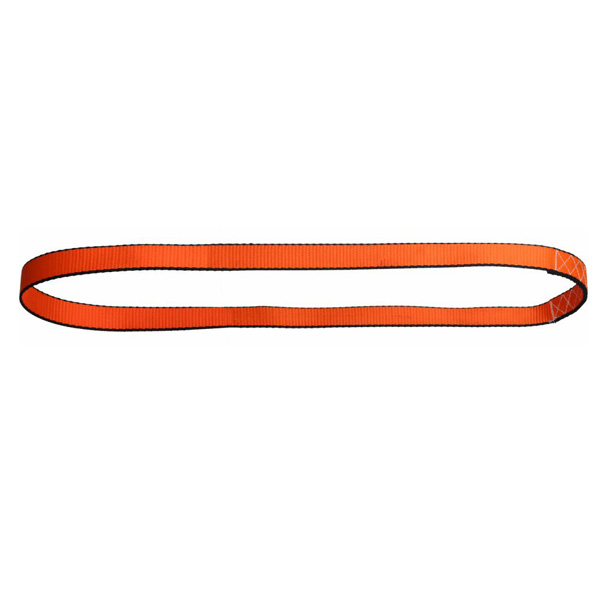

Product Code - U730EA
Cross Arm Strap
Made up of 25mm wide Polyester Webbing Length : 0.6mtr., 1.0mtr. & 1.5mtr. or as requested Strength : Min 18 kN for 3 minutes Conforms to EN 795 : 2012 Type B

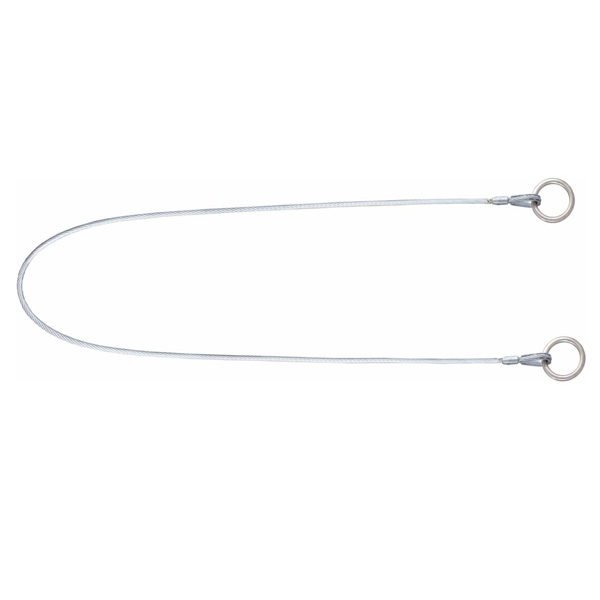

Product Code - U740EA
Anchorage Steel Wire Rope Sling
Made of PVC coated 8.0mm G. I. Wire Rope. The PVC coating allows protection of anchorage surfaces. Available Length : 1.0mtr., 1.5mtr., 1.8mtr. & 2.0mtr. or as requested Has Steel thimbles at both the ends to enable connection with all hardware. Minimum Breaking Strength : 5000lbs / 23kN Conforms to EN 795 : 2012 Type B
*Length available as per request

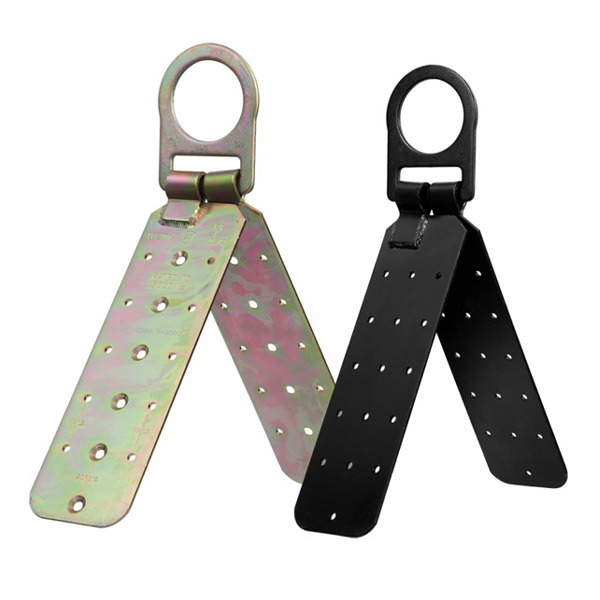

Product Code - U750EA
Hinged Steel Roof Anchor
The Hinged Steel Roof Anchor has two Steel Hinged Flaps which can be nailed to the roof wooden structure through various wide angles to provide a safe anchorage. The Steel Flaps each having 32 holes which can be fitted on the two sides of a wooden structure by means of nails inserted in the holes. Has D-ring which allows movement over full work surface. Material: Galvanized Steel Minimum Breaking Strength: 23 kN Finish: Powder Coated or Zinc Plated Weight: 1.14kgs Conforms to: EN 795: 2012 Type A & ANSI Z 359.1: 2007
